Drip irrigation kits in three different sizes to irrigate 20 pots on a balcony, a small garden with 80 plants and a garden larger with 150 plants. The kits are very versatile and are suitable to perform the irrigation of a plurality of crops because the spacing is not predetermined. The installation is simple and fast.
The system is not self-compensating, it works for emptying the low pressure (less than 1 bar), is suitable to be fed by a rain water tank placed in a raised position.
KIT GARDEN 150 VEGETABLES
The kit contains:
| 1 N | Cylinder valve with nut ring 20 x 3/4” female threade (tap connector) | |
| 3 N | 90 ° elbow with nut ring 20 x 20 | |
| 1 N | Tee with nut ring 20 x 20 x 20 | |
| 2 N | End line plug with nut ring 20 | |
| 1 N | Coupling with nut ring 20 x 20 (for repair) | |
| 10 N | Clamp saddles 20 x 1/2” simple | |
| 10 N | Cylinder valve with nut ring 16 x 1/2” male threaded | |
| 10 N | End line plug with nut ring 16 | |
| 1 N | Coupling with nut ring16 x 16 (for repair) | |
| 1 N | Pipe ø 16 LDPE PN.6 50 m roll (lines in which to inset capillary) | |
| 1 N | Pipe ø 20 LDPE PN.6 25 m roll (manifold) | |
| 1 N | Punch for pipes | |
| 150 N | Pieces 1 m capillary pipe “spaghetto” LDPE ø 1 x 3 | |
| 150 N | Plug in rods |

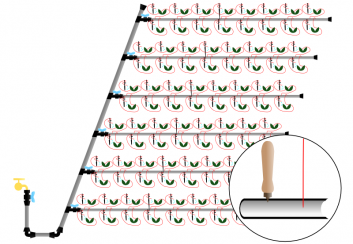

Installation (hypothesis):
10 pipes lines Ø 16 PN.6 lenght 5 m approx
Pipe lines are connected to the manifold with clamp saddle + valve; with the fittings provided can create no more than 10 pipe lines Ø 16.

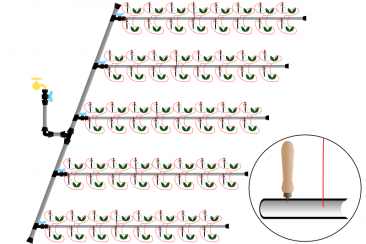

Manifold Ø 20 PN.6 25 m, with the material provided installation can be giving water in the head or in the middle (with Tee 20 x 20 x 20).
|
|
|
|

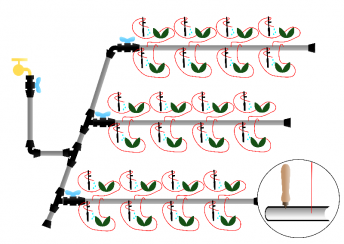

KIT GARDEN 80 VEGETABLES
The kit contains:
| 1 N | Cylinder valve with nut ring 16 x 16 | |
| 4 N | Cylinder valve with nut ring 16 x 3/4” female threaded | |
| 1 N | Coupling with nut ring 16 x 16 (for repair) | |
| 1 N | Tee with nut ring 16 x 16 x 16 | |
| 2 N | Tee with nut ring 16 x 3/4” x 16 male threaded | |
| 3 N | 90° elbow with nut ring 16 x 16 | |
| 1 N | 90° elbow with nut ring 16 x 3/4” male threaded | |
| 4 N | End line plug with nut ring 16 | |
| 1 N | Pipe ø 20 LDPE PN.6 25 m roll | |
| 1 N | Punch for pipes | |
| 80 N | Pieces 1 m capillary pipe “spaghetto” LDPE ø 1 x 3 | |
| 80 N | Plug in rods |
|
|

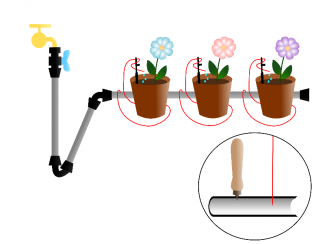

KIT BALCONY 20 POTS / KIT BONSAI 20 POTS
The kit contains:
| 1 N | Cylinder valve with nut ring 16 x 16 | |
| 1 N | Cylinder valve with nut ring 16 x 3/4” female threaded (tap connector) | |
| 1 N | Coupling with nut ring 16 x 16 (for repair) | |
| 3 N | 90° elbow with nut ring 16 x 16 | |
| 1 N | End line plug with nut ring 16 | |
| 1 N | Pipe ø 16 LDPE PN.6 25 m roll | |
| 1 N | Punch for pipes | |
| 20 N | Pieces 1 m capillary pipe “spaghetto” LDPE ø 1 x 3 | |
| 20 N | Plug in rods (balcony kit) / Cage rods (bonsai kit) |
|
|
|
|
